Two-Way Plastic Side Wall/Ceiling Register in White 14" w X 8" h for Duct Opening (Outside Dimension is 16" w X 10" h)

Plastic sidewall/ceiling register is made of ABS plastic in bright white. It has built-in damper to control air flow. There are two screw holes on each side of the register to fix on the surface of wall or ceiling.

Sidewall/Ceiling Register Measurement

• Outside overall dimension is 16”wide and 10”high
• Duct opening – a hole that holds the duct neck to allow air to come out from HVAC system. This register fits in a duct opening of 14”wide and 8”high.

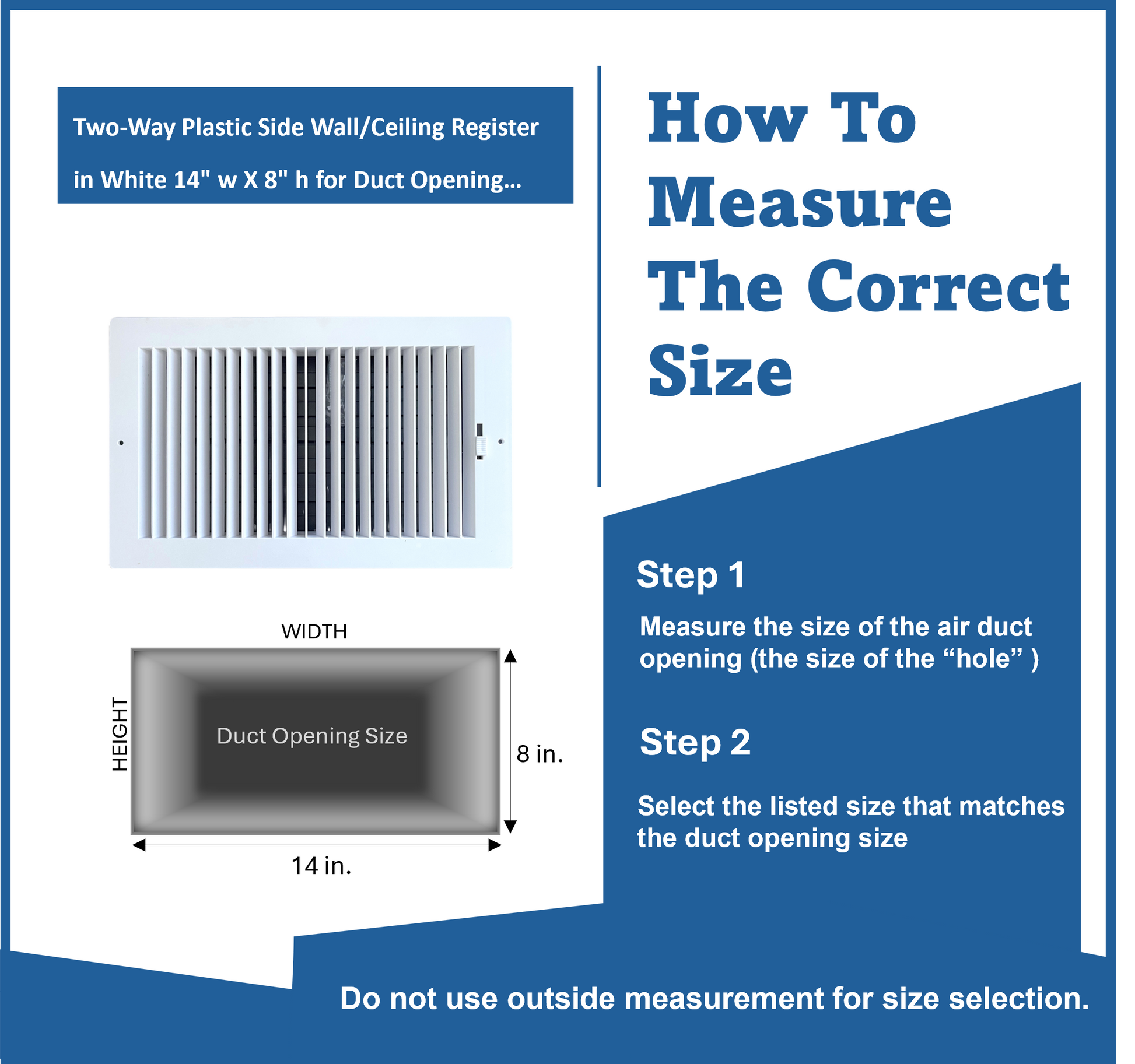

Size Selection Guide

1. Measure the size of the air duct opening(the size of the “hole” ) .
2. If the duct opening is 14 x 8 . then select the listed size of 14”x 8”.

Features:

• The Listed size 14"x 8" is for inside duct opening measurement, actual outside dimension is 16" X 10"
• All plastic construction with 1/2" fin spacing for high air flow with rust proof feature perfect for areas with high moisture
• Two way air deflection design with bright white face and black damper in the back
• Multi-shutter damper with easy handle to adjust desired amount of air flow
• Two screw holes on each side with distance of 14.9" and two screws are included
